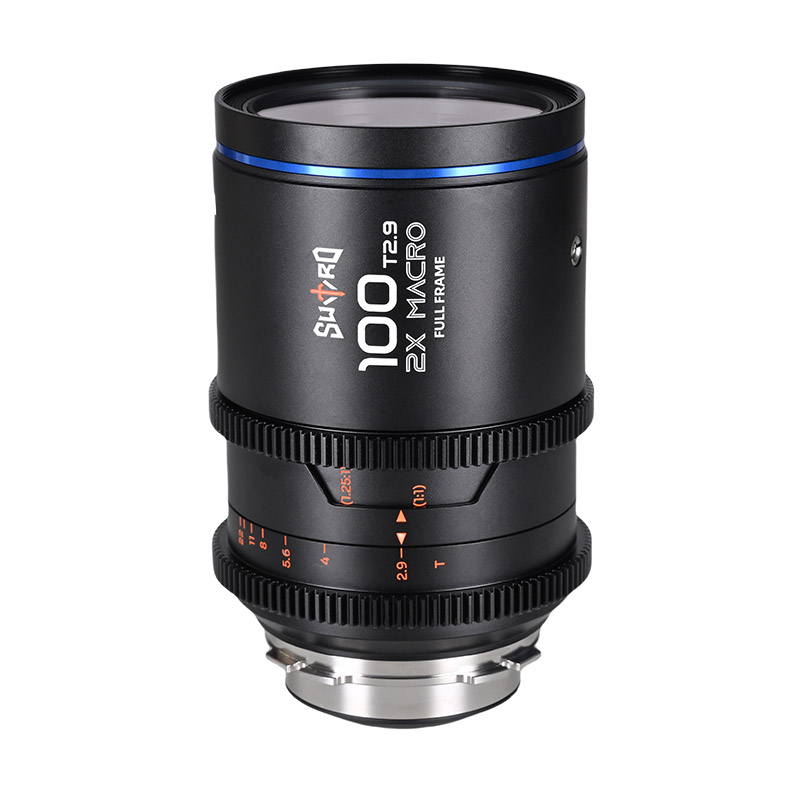

Sword FF Macro Cine Series

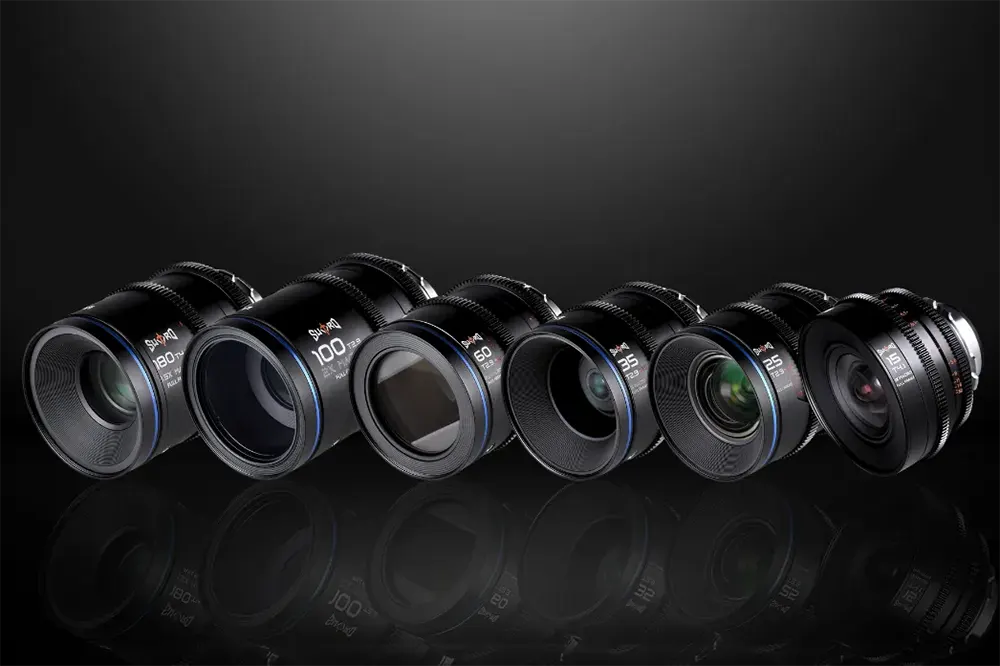

Introducing the Laowa Sword Macro Full Frame Cine series, a groundbreaking collection of macro cine lenses designed for everyone. This versatile lineup spans from wide-angle 15mm, 25mm, and 35mm lenses to longer focal lengths of 60mm, 100mm, and 180mm, providing a comprehensive set for all shooting scenarios. Each lens in the series covers full-frame formats, delivering unparalleled sharpness, stunning color rendition, and exceptional macro capabilities. Weighing in at under 1kg (2.2lbs), these lenses are among the lightest on the market, ensuring ease of use.
ARRI PL mount in default, optional Canon EF mount bayonet and mirrorless mount bayonets available for purchase.
*NO EF mount available for 25mm
Focal Length:
Optional Bayonets:
Description
SMALL YET SOLID
Despite being designed to cover full-frame formats, the Laowa Sword series remains impressively compact and lightweight. Each lens in the series weighs under 1kg (2.2lbs), making them some of the lightest options available. This design allows filmmakers to easily explore different setups and mount the camera in various situations, whether on gimbals, robot arms, or for outdoor and travel shoots.
SHARPER THAN EVER
The Laowa Sword series is engineered to deliver exceptional sharpness and clarity in every shot. These lenses ensure that every detail is captured with precision, from the center to the edges of the frame. No matter how wide the shots is or how close you get, the sharpness remains.
CA CONTROLLED
Each lens in the Laowa Sword series is engineered with superior chromatic aberration (CA) control, ensuring that images are free from color fringing. This advanced design helps deliver sharp and vibrant visuals across the entire frame, maintaining the integrity of your shots from edge to edge.
2 : 1 MAGINIFICATION
The Laowa Sword series sets itself apart with superb macro capabilities, offering some models with an impressive 2:1 magnification rate. This allows for incredibly detailed close-up shots, capturing the finest textures and nuances with unmatched clarity.
THIS IS HOW CLOSE 2:1 MAGNIFICATION CAN GET YOU.
Interchangeable Mounts
*NO EF mount available for 25mm
Filter Thread
77mm filter thread for 25mm/35mm/60mm/100mm/180mm
SPECIFICATION
| Lens name |
Laowa Sword Macro FF Cine Series |
|||||
| Focal length | 15mm | 25mm | 35mm | 60mm | 100mm | 180mm |
| Aperture range |
T4.1-32 |
T2.9-22 |
T4.6-32 | |||
| Format |
Full Frame |
|||||
| Image circle diameter |
43.2mm / 1.7″ |
|||||
| Angle of view |
110.5° |
81.7° | 63.4° | 39.7° | 24.4° |
13.7° |
| Lens structure |
12 elements in 9 groups |
13 elements in 10 groups | 13 elements in 10 groups | 14 elements in 11 groups | 12 elements in 10 groups |
12 elements in 9 groups |
| Aperture blades |
14 |
7 | 13 | 13 |
13 |
13 |
|
Aperture throw |
36.38° | 40° | 59.4° | 73.1° |
65° |
61.3° |
| Focus throw |
84° |
100° | 270° | 160° | 220° |
270° |
| Focus scale |
Dual Scale |
|||||
| Min. focusing distance |
12cm / 4.72″ |
16.8cm / 6.61″ | 17.8cm / 7.01″ | 21cm / 8.27″ | 24.7cm / 9.72″ |
30.6cm / 12.05″ |
| Min. working distance |
0.07cm / 0.028″ |
2.14cm / 0.85″ | 3.2cm / 1.26″ | 5.9cm / 2.32″ | 8cm / 3.15″ |
14.2cm / 5.59″ |
| Focus mode |
Manual (MF) |
|||||
| Magnification |
1X |
1X | 1X | 2X | 2X |
1.5X |
| Follow Focus Pitch |
0.8mm / 0.03″ |
|||||
| Filter Thread |
Ø95mm |
Ø77mm |
||||
| Front Diameter |
Ø100mm / Ø3.94″ |
Ø80mm / Ø3.15″ |
||||
| Dimensions |
67.27mm *Ø104.8mm / 2.65″*Ø4.13″ |
94.56mm *Ø85.6mm / 3.72″*Ø3.37″ | 94.56mm *Ø85.6mm / 3.72″*Ø3.37″ | 112.93m *Ø85.6mm / 4.45″*Ø3.37″ | 139.5mm *Ø85.6mm / 5.49″*Ø3.37″ |
125.21mm *Ø85.6mm / 4.93″*Ø3.37″ |
| Weight |
~640g (Without front lens cap and rear lens cap) |
~755g / 1.66lb (Without front lens cap and rear lens cap) | ~750g / 1.65lb (Without front lens cap and rear lens cap) | ~736g / 1.63lb (Without front lens cap and rear lens cap) | ~957g / 2.11lb (Without front lens cap and rear lens cap) |
~734g / 1.62lb (Without front lens cap and rear lens cap) |
| Mounts |
ARRI PL (Optional: Canon EF, Sony E, Canon RF, Nikon Z, L mount) |
ARRI PL (Optional: Sony E, Canon RF, Nikon Z, L mount) *NO EF mount | ARRI PL (Optional: Canon EF, Sony E, Canon RF, Nikon Z, L mount) | ARRI PL (Optional: Canon EF, Sony E, Canon RF, Nikon Z, L mount) | ARRI PL (Optional: Canon EF, Sony E, Canon RF, Nikon Z, L mount) |
ARRI PL (Optional: Canon EF, Sony E, Canon RF, Nikon Z, L mount) |
